Description
bass tube pedal Jad Freer Luce Tube Bass DI PedalTUBE DI ACTIVE SUMMING BALANCED XLR OUT MADE IN ITALY FREE SHIPPING IN THE USA EXPERT TECHNICAL SUPPORT IN STOCK MEANS IN STOCK DESCRIPTION Luce, which means "light" in Italian, is a studio quality, transformer based tube DI (Direct Injection) box; a unity gain (1: 1) tube preamplifier and active summing unit. The main purpose of a DI box is to convert an unbalanced, high impedance instrument signal into a balanced, low impedance signal allowing long
TUBE DI
ACTIVE SUMMING
BALANCED XLR OUT
MADE IN ITALY
DESCRIPTION

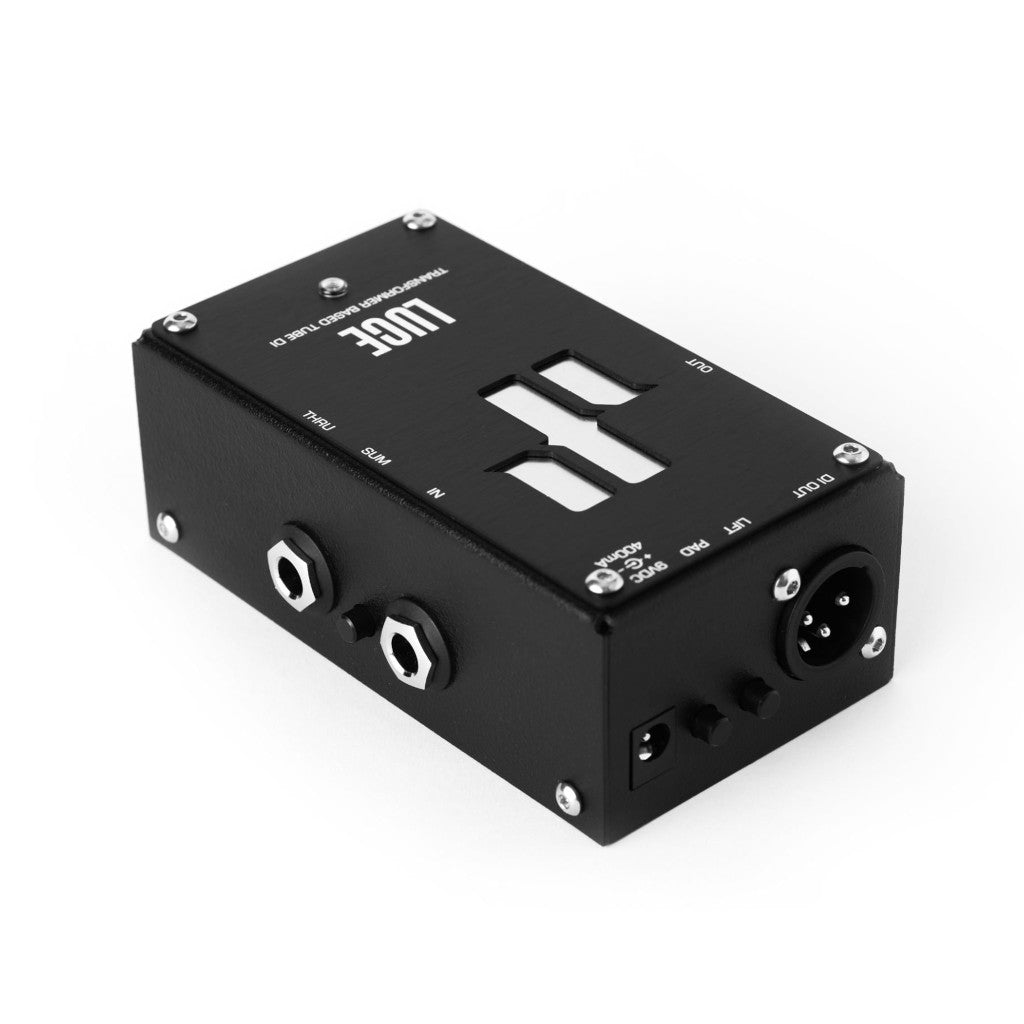

Luce, which means "light" in Italian, is a studio-quality, transformer-based tube DI (Direct Injection) box; a unity-gain (1:1) tube preamplifier and active summing unit.
The main purpose of a DI box is to convert an unbalanced, high-impedance instrument signal into a balanced, low-impedance signal — allowing long cable runs without interference and enabling direct connection to a mixing console or studio interface.
Beyond that, Luce also provides an additional unbalanced output that benefits from the tube circuit, plus an active summing stage that allows two instruments to be connected at once.
All in a compact, pedalboard-friendly format.
Inside the Luce, you’ll find one high-quality, low-noise ECC88/6922 tube and one OEP/Carnhill audio transformer, just like those found in legendary British consoles.
TECHNICAL
Dimensions:
4.5" [11.4cm] Long
2.8" [7.2cm] Wide
1.7" [4.2cm] Deep
Weight: 0.9 Lbs [0.4 Kg]
Power Supply: 9 VDC
Power Consumption: 400 mA
Preamp Tubes: 1 x 6922/E88CC
SPECIFICATIONS
Input Impedance: 4.7 MOhm
Output Impedance: 600 Ohm
Noise: -122dBV
Frequency Response: ±0.25 dB (20 Hz – 90 KHz)
Max Input/Output Level: +12 dBu
THD @ 1 KHZ, +12 dBu: 0.17%
CONTROLS & FEATURES
Right Side
- IN: 1/4”(6.3 mm) buffered mono instrument input that feeds the Luce
- SUM: Engaging this switch turns the THRU jack into a second buffered input, summing both signals together
- THRU: 1/4”(6.3 mm) copy of the INPUT signal; it can be used also as a tuner out. When the SUM switch is pressed in, the THRU jack becomes an additional buffered input: you can use it to sum a stereo signal to mono or connect two different instruments
Left Side:
- OUT: 1/4”(6.3 mm) tube-driven output of the Luce
DI Out Side
- 9VDC: The Luce can be powered by a standard 9V centre-negative power supply. Because of to the analog tube circuitry, use a high-quality regulated power supply capable of minimum 400 mA.
- The Luce cannot be phantom powered.
PAD: Attenuates the input signal by -10 dBm. Engage if you experience unwanted saturation with high-output or line-level sources
LIFT: Reduces or eliminates hum/noise on the DI output by interrupting ground loops
DI OUT: Balanced XLR output, transformer-coupled placed after the full tube circuit.
